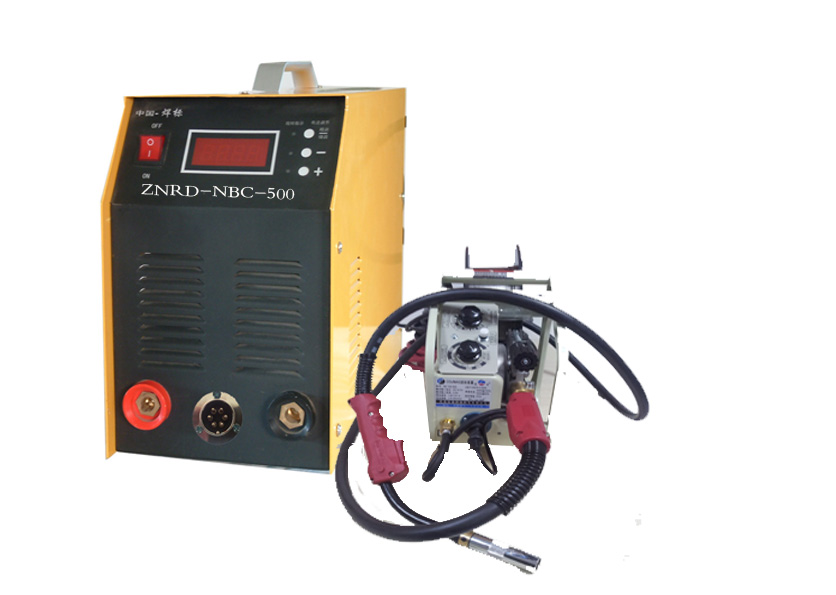

Digital Intelligent Manual Arc & Gas-Shield Welder
Product Features High speed CPU digital intelligent control, auto-adjusting optimum output Excellent follow performance of arc, high-speed reaction rate Good performance of low current, especially suitable for welding thin plate and all-position Advanced and steady wire feed circuit Extra margin of welding power, cable extension to 50m, suitable for most materials The welding heat input does not change with the power network voltage, constantheat input of arc welding
Technical Parameters
Parameters
| SZZN-MIG500 | Remarks
| Supply voltage (V) | 380 | 1.Available for all kinds of acid and alkaline welding rod, and cellulose-based electrode vertical down welding. 2.Suitable for welding all kinds of low, medium and high carbon steel, low alloy steel and stainless steel. | Rated input current (A) | 50 | Input voltage range (V) | 340~440 | | Arc voltage (V) | 17~30 | Duty cycle (%) | 85 | Efficiency (%) | 95 | Power factor | 0.95 | Weight(kg) |
11
| Overall dimensions (mm） | 400*180*290 |
|
