Baoji Zhihan Mechanical Technology CO.,LTD

SZZN-MIG350


类型 : Digital Intelligent Manual Arc & Gas-Shield Welder
品牌 : zhihan Technology
产品详情

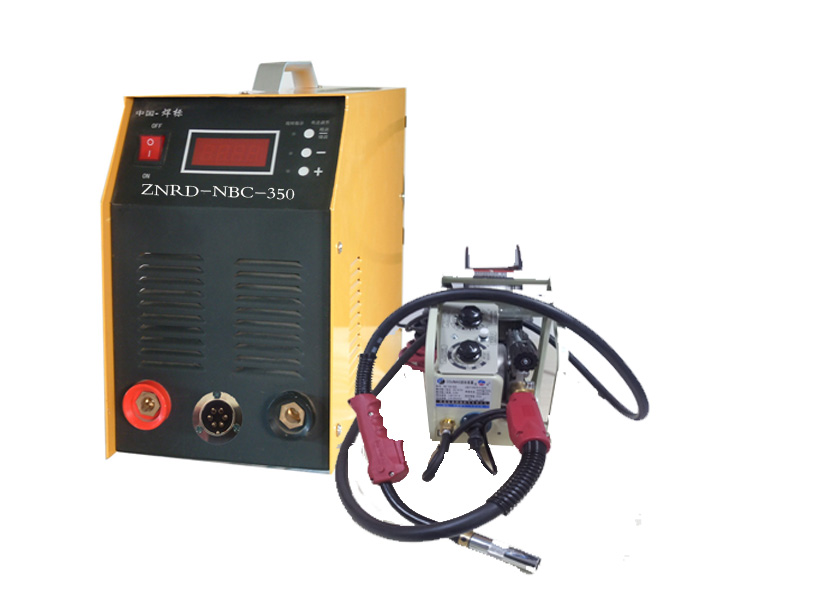

Digital Intelligent Manual Arc & Gas-Shield Welder


Product Features

  • High speed CPU digital intelligent control, auto-adjusting optimum output;

  • Excellent follow performance of arc, high-speed reaction rate;

  • Good performance of low current, especially suitable for welding thin plate and all-position;

  • Advanced and steady wire feed circuit;

  • Extra margin of welding power, cable extension to 50m, suitable for most materials;

  • The welding heat input does not change with the power network voltage, constant heat input of arc welding .

    Technical Parameters


Parameters

SZZN-MIG350

Remarks

Supply voltage (V)

380

1.Available for all kinds of acid and alkaline welding rod, and cellulose-based electrode vertical

down welding.

2.Suitable for welding all kinds of low, medium and high carbon steel, low alloy steel and

stainless steel.

Rated input current (A)

31

Input voltage range (V)

340~440

        Arc voltage (V)

17~28

Duty cycle (%)

85

Efficiency (%)

95

Power factor

0.95

Weight(kg)

11

Overall dimensions (mm)

400*180*290
